Chamfer

Chamfer two lines. Chamfer is equivalent to chopping off a corner.

Mode Settings:

Setting Data Type Comments
Chamfer Distance 1 Distance >= 0 Cutoff distance for line 1
Chamfer Distance 2 Distance >= 0 Cutoff distance for line 2
D2 = D1 Boolean Force Distance 2 to always equal Distance 1

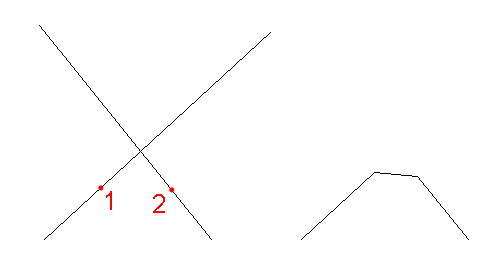

Default Method: Select the appropriate side of the first line, then select the appropriate side of the second line. Method will fail if a chamfer distance is too large.

Prompt Data Type Comments
First Line Point Select first line
Second Line Point Select second line

Restrictions: Must select two lines
