Scale

Scale an array of objects in the drawing space.

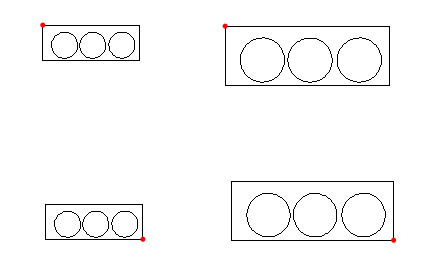

Default Method: All objects will be scaled relative to the scale point specified by the user, meaning any x or y distance between the scale point and a point on the object will be scaled by the scale factor.

Prompt Data Type Comments
First Sel Point Point First selection point
Second Sel Point Point Second selection point
Scale Origin Point Specify scale origin
Scale Factor Point or Number > 0 Specify scale factor

Restrictions: Scale Factor > 0 and Scale Factor != 1
